FAQ & Troubleshooting

Common PikkoBot-specific issues and fixes. For issues not listed here, email hello@pikkobot.com.

Solenoid Valve Won't Open in OpenPnP​

  • Symptom: in the Debug page, the air pump and solenoid valves turn on normally, but during a job the valves don't open.
  • Cause: the actuator G-code uses a value of 180 for the solenoid, but the firmware expects 255 to fully open.

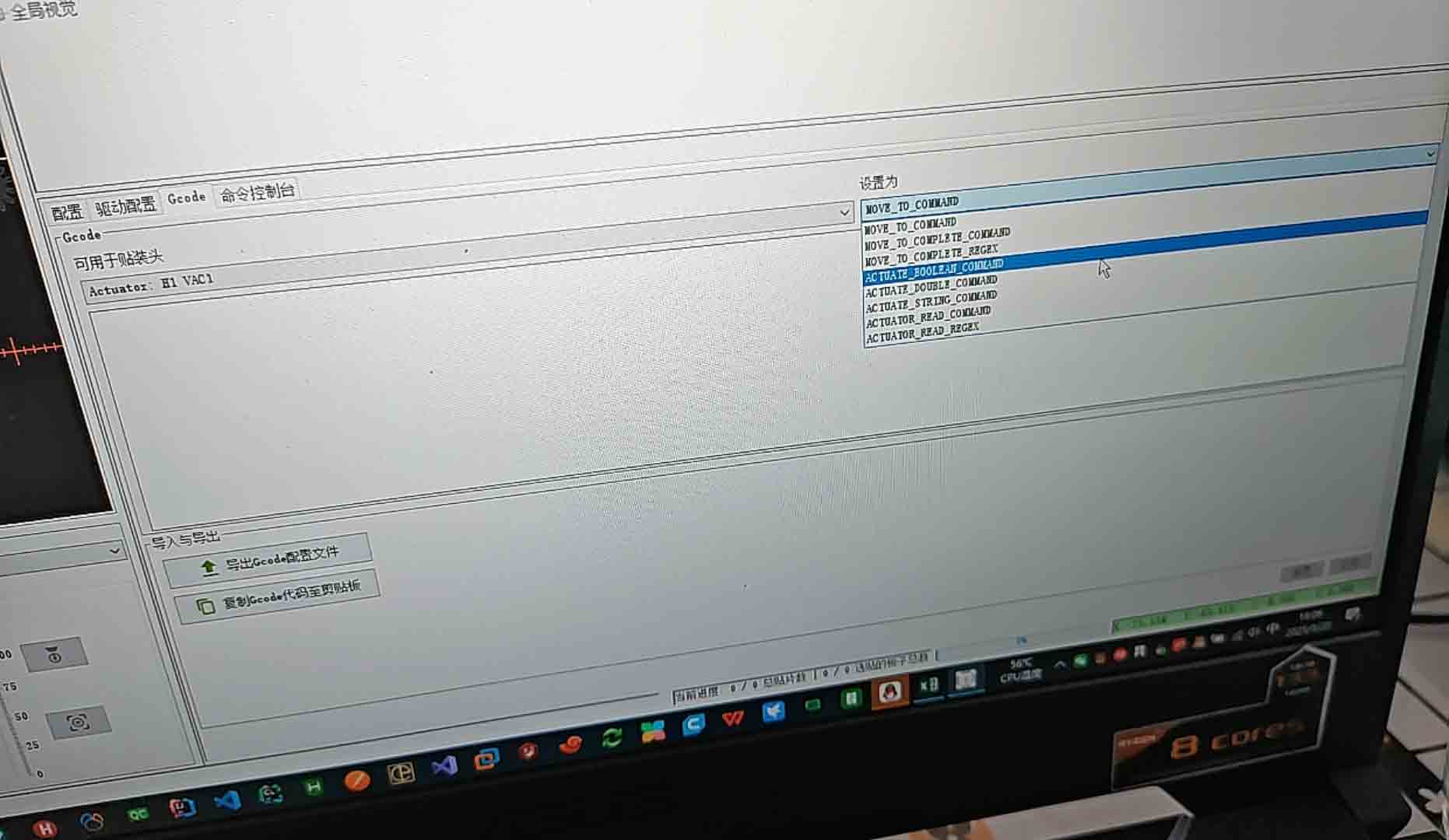

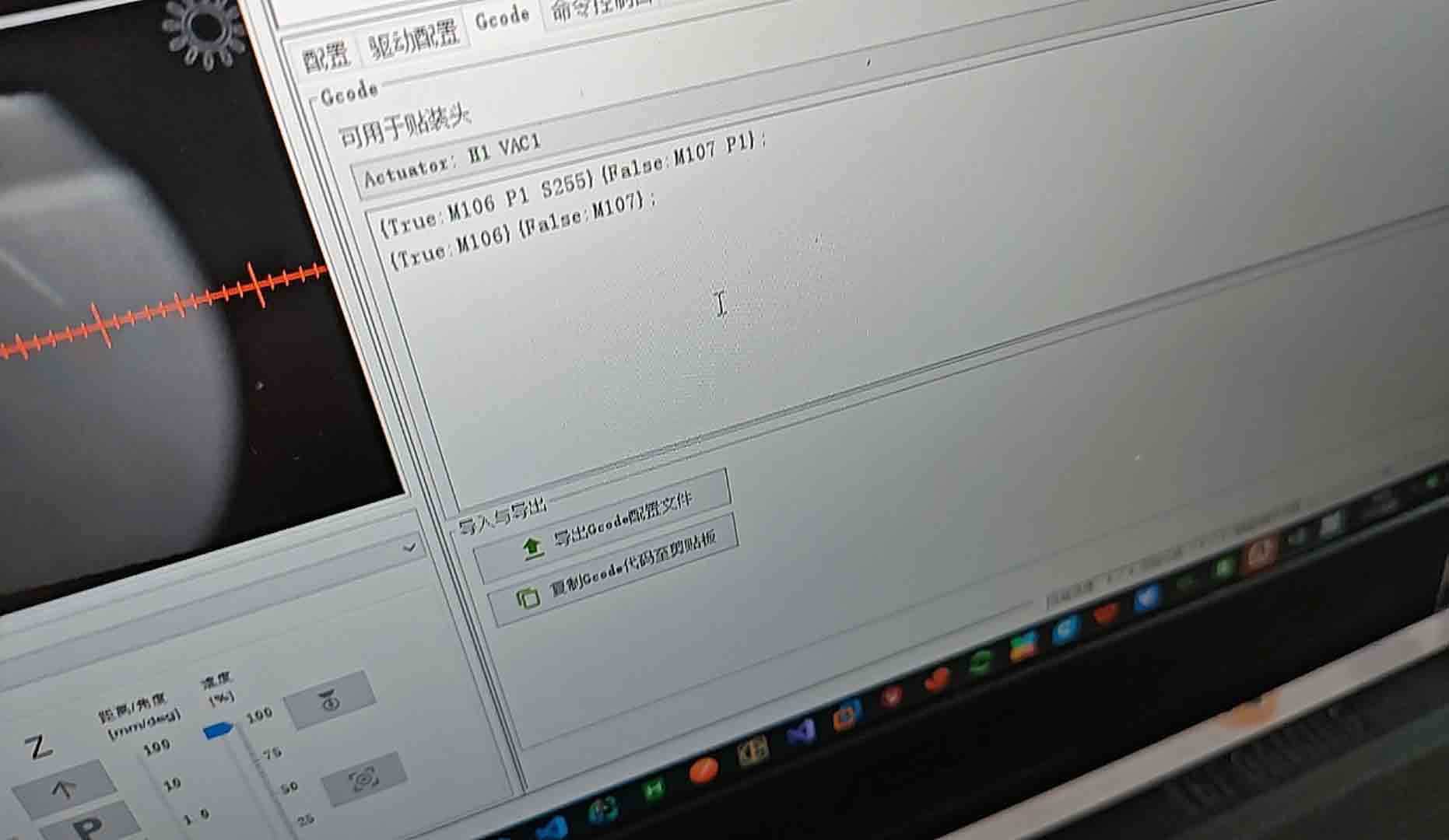

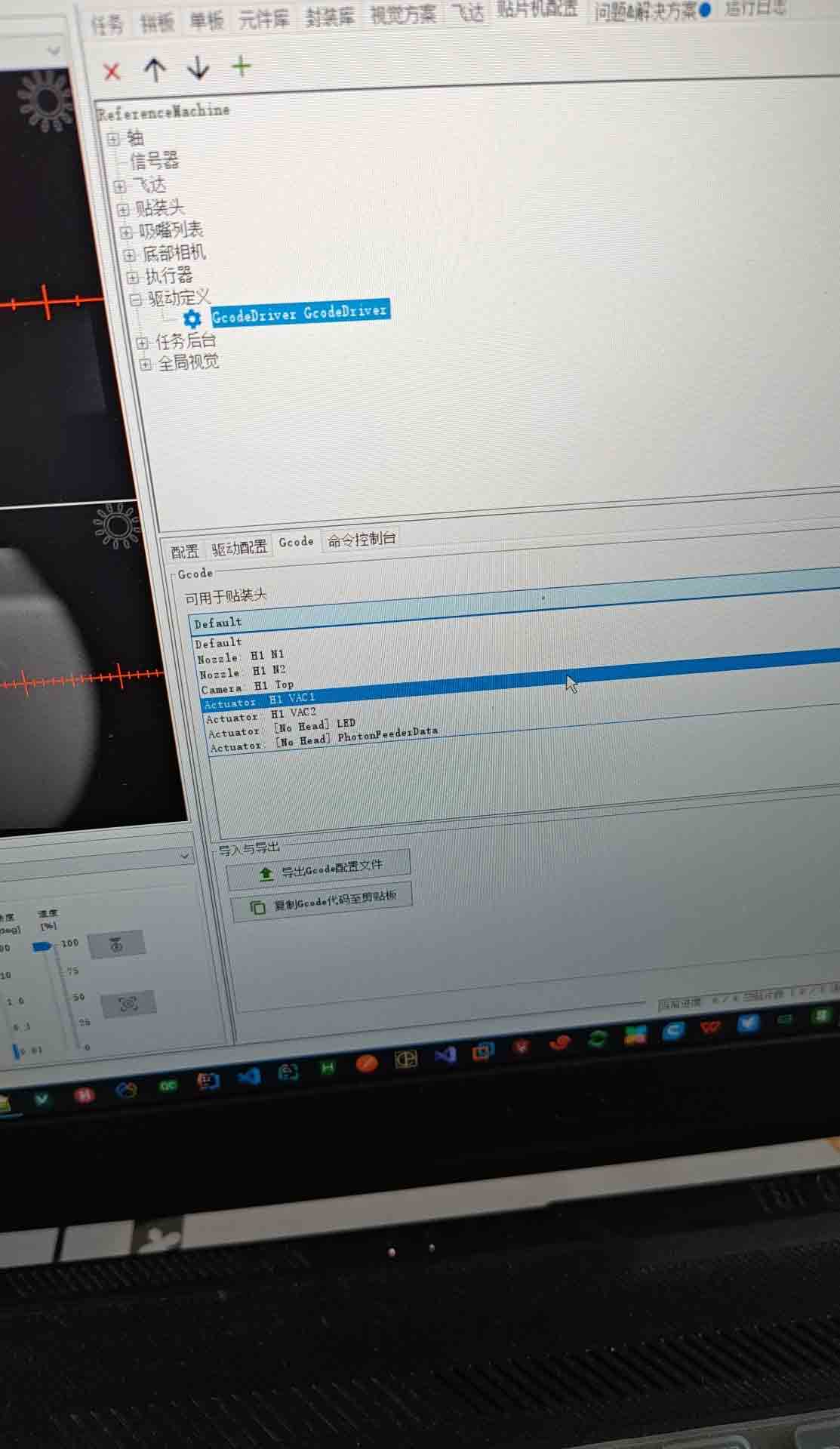

  • Fix: Machine Setup → Actuators → find VAC1 and VAC2 → change S180 to S255 for both → save and test.
Solenoid G-code fix Valve dialog Actuator config

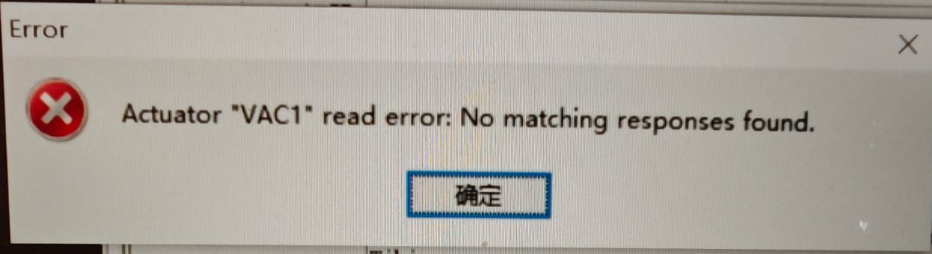

Pressure Sensor Error / Pop-up Warning​

  • Symptom: OpenPnP shows a pressure sensor failure or vacuum pressure out-of-range error.
  • Cause: PikkoBot v4 ships without a vacuum pressure sensor and uses bottom-camera vision instead; OpenPnP's default sensor check always fails.

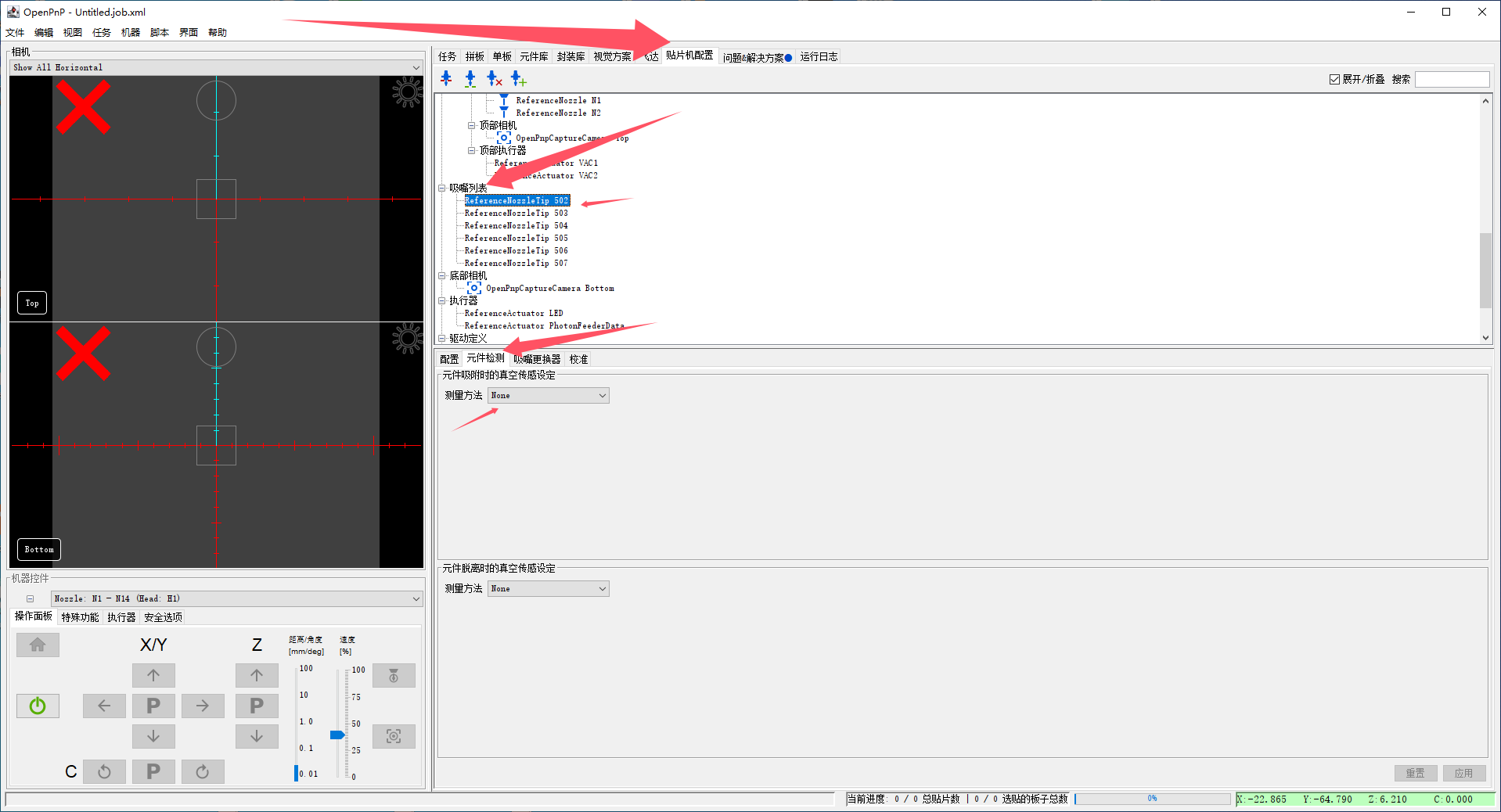

  • Fix: Machine Setup → Heads → Nozzles → Nozzle 1 → find Vacuum Sensing → set Method to None → repeat for Nozzle 2.
Pressure error popup Pressure sensor setting

Controlling Top and Bottom LEDs Separately​

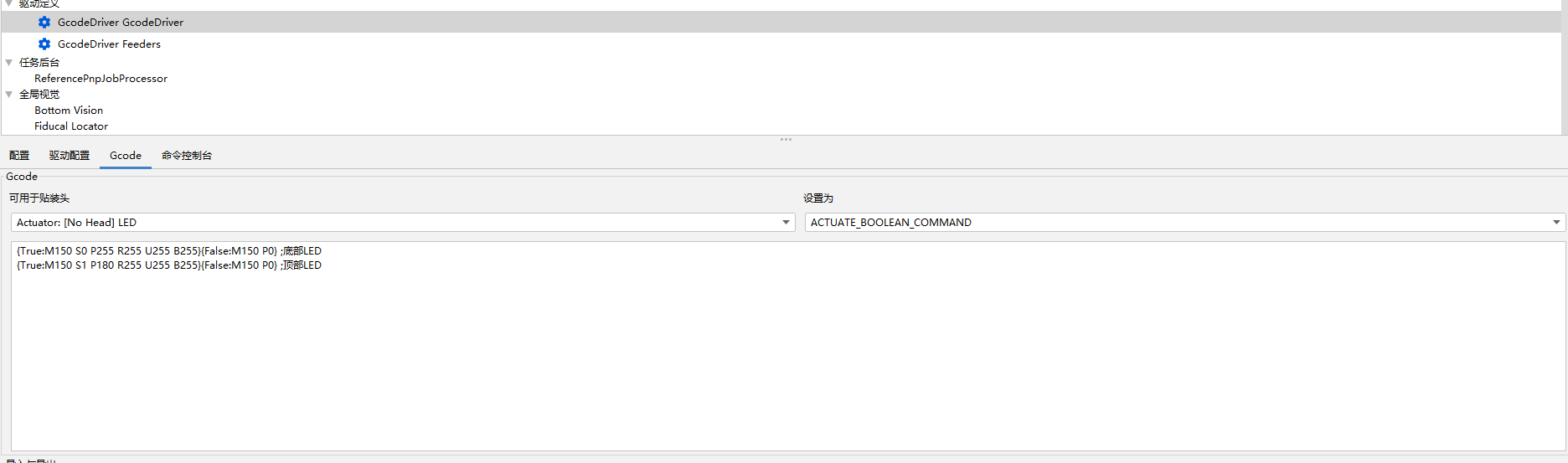

Send G-code manually via Machine → Send G-code:

M150 S 0 ; Top LED off (S0 = top)
M150 S 1 ; Bottom LED off (S1 = bottom)
M150 P 255 S 0 ; Top LED full brightness
M150 P 255 S 1 ; Bottom LED full brightness
M150 P 128 S 0 ; Top LED half brightness

The S parameter selects the LED strip; P sets brightness (0–255).

LED control

Machine Makes Grinding Noise During Homing​

  • Symptom: grinding or skipping sound when homing an axis.
  • Likely causes: motor current too low; axis obstructed (snagged cable, debris); limit switch not triggering.
  • Fix: check nothing is physically blocking the axis; check limit switch cables are connected; if it moves freely by hand but grinds under power, motor current may need adjustment — contact support.

Debug vs OpenPnP Behavior Mismatch​

  • Symptom: things work in the hardware Debug page but behave unexpectedly in OpenPnP.
  • Cause: OpenPnP sends G-code through its own actuator layer with different parameters.
  • Fix: compare the G-code in Machine Setup → Actuators with what the Debug panel sends, and update the actuator G-code to match working values.
